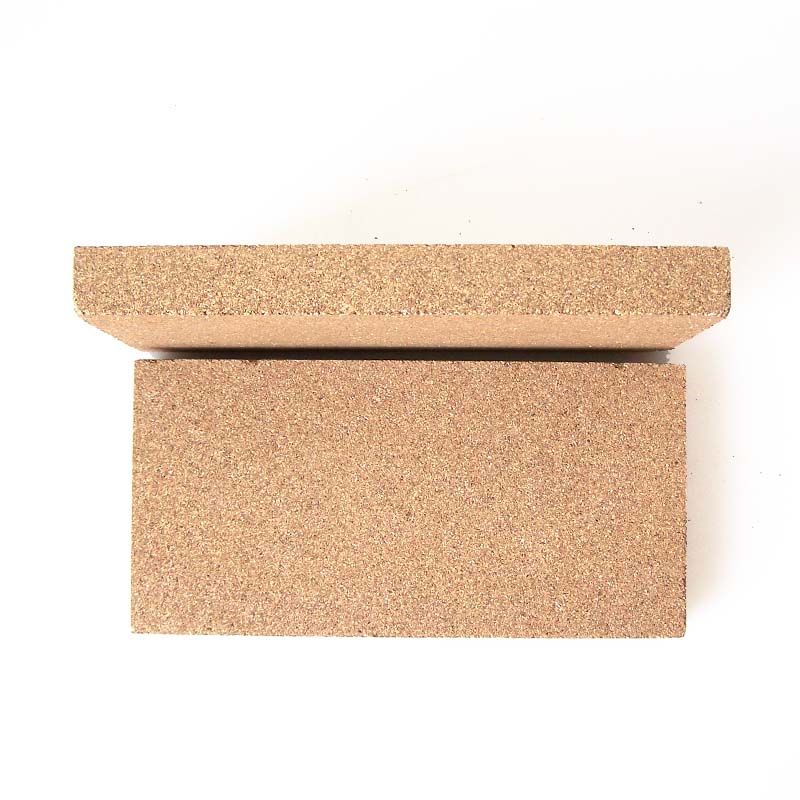

Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical

Ask Lasest Price
Model Number :	BWV-TRI
Brand Name :	Bluewind
Supply Ability :	300000 Piece/Pieces per Month
Price :	$1.80/pieces 2000-9999 pieces
Delivery Time :	15workdays

Add to Cart

Product Details
Company Profile

Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical

Magnesia Silica Metallurgy Ladle Insulation Board 416 x 101 x 10 mm

Description of Vermiculite Board

BWV Vermiculite board

BWV vermiculite board

Use Xinjiang Silver vermiculite ore, after high temperature heating, expanded 6-12 times as the material size, with excellent insulation and refractory performance. With unique technology, make it good strength and insulation performance for industrial energy saving and emission reducing applying.

$Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical$

Features

Refractory: Up to 1200 °C fire/heat resistant

High thermal shock resistant, can be used on fire side;

Non combustible

Thermal/ Heat insulation: Low thermal conductivity <0.3 W /m.K @ 1,000 Celsius degree

Density range: 0.4-1.2 g/cm³

Chemical resistant;

High mechanical strengths;

Easy for secondary tooling and machining

Environmental friendly

Foundry Ladle

$Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical$

Metallurgy Insulation Layer

Bluewind TRI series aluminum silicate plate, can resist max 1,200 Celsius degree firing, and the thermal conductivity below 0.3 E/m.K. Which in steel melting industry, it has been applied in the liquid ladle insulation layer, for the high temperature resistant and thermal insulation performance.

Thickness: Commonly applying 10/15/18/32 mm plate as the insulation claddings.

Performance: Can keep the outside temperature as designed.

Service Life: Expected to serve for 10 months or longer ( the refractory layer requires refurbished regularly)

Shapes: Rectangle or trapezoid

Installation: Past to the inside wall of ladle with refractory clay; then install the permanent layer, and last refractory layer

$Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical$

Aluminum Electrolytic

Electrolytic Aluminum Melting industry

In electrolytic aluminum melting industry, Bluewind refractory and insulation vermiculite products mainly works in following two parts: anti-leakage bricks and insulation layer vermiculite bricks.

Anti-leakage bricks: It requires to stand the high temperature and prevent the aluminum melting liquid leakage. And if the insulation capacity of the anti-leakage layer better, it can reduce the heat consumption and energy costs.

Bluewind high density vermiculite brick, max resist 1,200 C heating and firing, with stable working and insulation performance, in the layer of anti-leakage, forms a ceramic like layer under continuous high temperature heating, which can prevent the aluminum melting liquid leakage. While the thermal conductivity is below 0.3 W/m.K, which great lower than most refractory bricks, which make it helping the energy saving and production improving.

Insulation layer vermiculite bricks: In the insulation layer, vermiculite bricks work like a transition layer which prevent the heat spreading fast outside the melting cells. It can resist the high temperature and has a good insulation performance, can take part roles of the clay brick and Calsium Silicate boards, and works in the middle layer of the clay brick and Calsium Silicate bricks.

$Metallurgy Ladle Vermiculite Refractory Panel 416x101x10mm Practical$

Product Paramenters

Physical parameter
Density (kgs/m3)	450	800	1200
Max temp.	1050 ℃	1150 ℃	1200 ℃
Strength	2.4/1.0 MPa	5.5/2.1 MPa	8/3.5 MPa
Linear shrinkage	3%	1%	1%
Thermal conduct.
@ 200 ℃	0.11 W/m.k	0.16 W/m.k	0.23W/m.k
@ 400 ℃	0.13W/m.k	0.18 W/m.k	0.26 W/m.k
@ 600 ℃	0.15 W/m.k	0.2 W/m.k	0.27 W/m.k
Chemical parameter
SiO2	43-48 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1000*610mm	10-80 mm thickness	10-80 mm thickness	10-80 mm thickness
1200*1000 mm	30-80 mm thickness	10-80 mm thickness	10-80 mm thickness
