Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace

Ask Lasest Price
Model Number :	BWV-LD
Brand Name :	Bluewind
Supply Ability :	5000 Piece/Pieces per Month
Price :	$30.00/pieces 32-299 pieces
Delivery Time :	15workdays

Add to Cart

Product Details
Company Profile

Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace

China refractory material aluminum insulation construction vermiculite silica brick

Description of Vermiculite Board

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Features

High temperature resistant up to 1200 C;

High thermal shock resistant, can be used on fire side;

A1 non combustibility classification;

Low thermal conductivity

Available in various densities of 400-1200 kgs/m3;

High chemical resistant;

High mechanical strengths;

Easy for secondary tooling and machining;

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

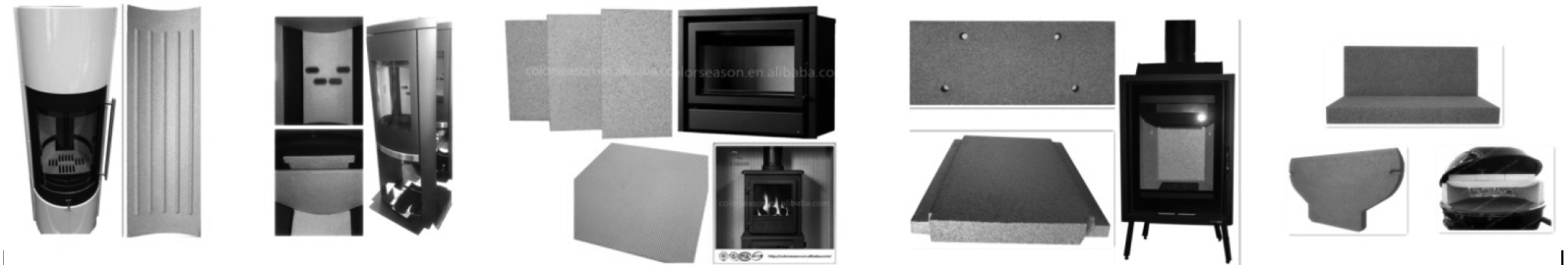

Stoves applying

For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.

Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Aluminum Electrolytic Cells

The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.

And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.

For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.

Recommend Products

Product Packaging

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Product Paramenters

Physical parameter
Density (kgs/m3)	700	800	900
Max temp.	1150 ℃	1150 ℃	1150 ℃
Strength	4.5/2.0 MPa	5.5/2.1 MPa	6.2/2.2 MPa
Linear shrinkage	1%	1%	1%
Thermal conduct.
@ 200 ℃	0.14 W/m.k	0.16 W/m.k	0.18 W/m.k
@ 400 ℃	0.16W/m.k	0.18 W/m.k	0.2 W/m.k
@ 600 ℃	0.18 W/m.k	0.2 W/m.k	0.22 W/m.k
Chemical parameter
SiO2	43-46 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1005*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness
1225*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness

Data are average results of tests conducted under standard precedures and are subject to variation.

Certifications

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Company Profile

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$ $Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Production Process

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Pressing

High pressure mould pressing to form the shapes required

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Drying

Drying for release the water contained and form the stable applying

$Lightweight Compressed Vermiculite Board , Fireproof Refractory Board For Fireplace$

Quality checking

For each unit we have one by one checking to ensure the end using.
