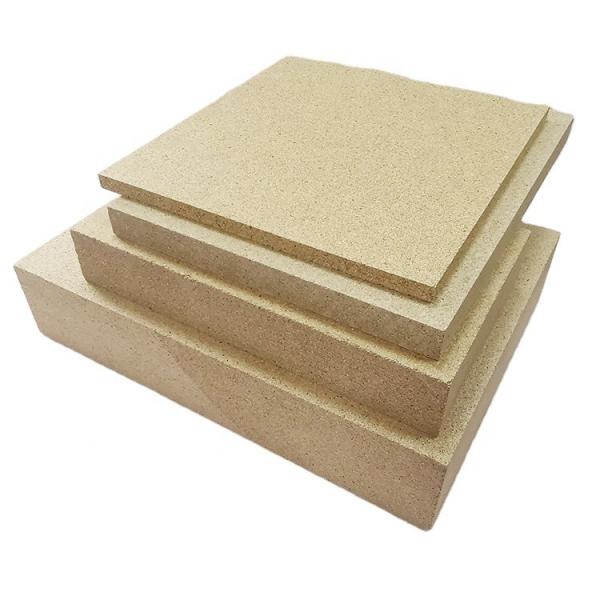

ODM Wood Stove Steel Casting Ladle Insulation Board Rectangle Shape Thickness 25mm

Ask Lasest Price
Brand Name :	Bluewind
Model Number :	BWV-Baffle
Supply Ability :	100000 Piece/Pieces per Month
Price :	$28.00/pieces 80-639 pieces
Delivery Time :	15workdays

Add to Cart

Product Details
Company Profile

ODM Wood Stove Steel Casting Ladle Insulation Board Rectangle Shape Thickness 25mm

Vermiculite mica magnesium thermal insulation material fireproof board for wood stoves

Description of Vermiculite Board

Features

High temperature resistant up to 1200 C;

High thermal shock resistant, can be used on fire side;

A1 non combustibility classification;

Low thermal conductivity

Available in various densities of 400-1200 kgs/m3;

High chemical resistant;

High mechanical strengths;

Easy for secondary tooling and machining;

Vermiculite brick

Size:

1000*610 mm

Thickness:

45 mm

Density:

600 - 800 kgs/m3

Application:

Wood burning stoves and pellet stove

Features:

High thermal shock resistant

Low thermal conductivity

1100 C fire retardant

Good strength and good process-ability

Non-cracking and long service life

ODM Wood Stove Steel Casting Ladle Insulation Board Rectangle Shape Thickness 25mm

Wood burning stoves fire prevent

For stoves application, it requires lightweight and good fireproofing requirement, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our durable vermiculite boards with longer working life can resistant the bending and crushing which caused by long time uneven heating, bring the stoves longer service life and less trouble for the replacement.

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.

Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.

Aluminum Electrolytic Cells

The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.

And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.

Vermiculite boards applies 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic mixture bonding and high pressure pressing, after hours drying that made the good strength and fireproof insulation boards.

For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.

Details Images

Product Paramenters

Physical parameter
Density (kgs/m3)	700	800	900
Max temp.	1150 ℃	1150 ℃	1150 ℃
Strength	4.5/2.0 MPa	5.5/2.1 MPa	6.2/2.2 MPa
Linear shrinkage	1%	1%	1%
Thermal conduct.
@ 200 ℃	0.14 W/m.k	0.16 W/m.k	0.18 W/m.k
@ 400 ℃	0.16W/m.k	0.18 W/m.k	0.2 W/m.k
@ 600 ℃	0.18 W/m.k	0.2 W/m.k	0.22 W/m.k
Chemical parameter
SiO2	43-46 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %
Standard size & Thickness
1005*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness
1225*615 mm	10-60 mm thickness	10-60 mm thickness	10-60 mm thickness

Data are average results of tests conducted under standard precedure and are subject to variation.

Production Process

Pressing

High pressure mould pressing to form the shapes required

Drying

Drying for release the water contained and form the stable applying

Quality checking

For each unit we have one by one checking to ensure the end using.

Product Packaging

Company Profile

Bluewind Vermiculite Light-weight insulating brick is made from non-asbestos expanded silver vermiculite and inorganic fillers to give a uniform and controlled pore structure. The brick is compressed and sintered under high temperature. Bluewind Vermiculite Insulating Firebrick is widely used as transition refractory lining or back-up insulation in various kinds of industrial furnaces, helps improve the service life and better insulation performance.

Features
Excellent thermal shock resistance
Accurate and customized dimension
High crushing strength
Low thermal conductivity
Low heat storage
Long service life

Certifications

FAQ

Q1 : Are you a manufacture or trader?
A: We are a manufacturer based trading company, we not only can provide the high quality products with the
best price, but also can offer the total solution for your project requirement.

Q2: How can you control your quality?
A : For each production processing, Bluewind have complete QC system for the quality controlling and overall quality checking after production, and before packing and shipment, we have another quality checking to ensure every piece of the boards are to be delivered in good quality.

Q3 : Do you provide free samples?
A : We hope every sample valued, especially which requires machining tooling.

Q4 : What is your lead time?
A : It usually needs about 20- 35 days after receiving the PO.

Q5 : Can we visit your company?
A : Yes, for sure, you are welcome to visit our company and our products.

Q6 : What is the warranty of your products?
A : Our products have at least 1 year warranty, if any quality problems not caused by personal or accident,
we will take responsibility of the cost of the shipment and the replacement.

Q7: What's the MOQ of trial order?
A : we recommend the MOQ at least a full pallet so that the costs more efficient.

Q8: Why choose us?
A: We had been in the line for more than 15 years, insist in the quality first and good after-sales service. Bring the customers few troubles and satisfying on the applying.
