    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Ask Lasest Price
    Model Number :
    Brand Name : Bluewind
    Supply Ability : 320000 Piece/Pieces per Month
    Price : $2.50/pieces
    Delivery Time : 15workdays
    MOQ : 2000pcs
    • Product Details
    • Company Profile

    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Refractory vermiculite insulation board for steel ladles with high temperature resistant and low thermal conductivity
    Description of Vermiculite Brick
    BWV Vermiculite board

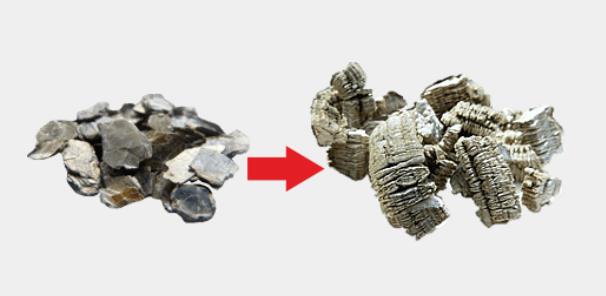

    Bluewind Vermiculite Light-weight insulating brick is made from non-asbestos expanded silver vermiculite and inorganic fillers to
    give a uniform and controlled pore structure. The brick is compressed and sintered under high temperature. Bluewind Vermiculite
    Insulating Firebrick is widely used as transition refractory lining or back-up insulation in various kinds of industrial furnaces,
    helps improve the service life and better insulation performance.
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles
    Features
    High crushing strength
    Excellent thermal shock resistance
    Low thermal conductivity
    Low heat storage
    Long service life
    Corrosion resistant
    Non-combustible
    Environmental friendly
    Lower emission
    Accurate and customized dimension
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles
    Foundry Ladle
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Metallurgy Insulation Layer

    Bluewind TRI series aluminum silicate plate, can resist max 1,200 Celsius degree firing, and the thermal conductivity below 0.3 W/m.K. Which in steel melting industry, it has been applied in the liquid ladle and tundish as the insulation layer, for the properties of high temperature resistant and thermal insulation.
    Thickness: Commonly applying 10/15/18/32 mm plate as the transition layer or insulation layer.
    Performance: Can keep the outside temperature as designed.
    Service Life: Expected to serve for 10 months or longer ( the refractory layer requires refurbished regularly)
    Shapes: Rectangle or trapezoid
    Installation: Past to the inside wall of ladle with refractory clay; then install the permanent layer, and last refractory layer
    Recommend Products
    Product Paramenters
    Physical parameter
    Density (kgs/m3)
    450
    800
    1200
    Max temp.
    1050 ℃
    1150 ℃
    1200 ℃
    Strength
    2.4/1.0 MPa
    5.5/2.1 MPa
    8/3.5 MPa
    Linear shrinkage
    3%
    1%
    1%
    Thermal conduct.
    @ 200 ℃
    0.11 W/m.k
    0.16 W/m.k
    0.23W/m.k
    @ 400 ℃
    0.13W/m.k
    0.18 W/m.k
    0.26 W/m.k
    @ 600 ℃
    0.15 W/m.k
    0.2 W/m.k
    0.27 W/m.k
    Chemical parameter
    SiO2
    43-48 %
    43-46 %
    45-48 %
    Al2O3
    10-13 %
    10-13 %
    13-16 %
    Fe2O3
    4-6 %
    4-6 %
    4-6 %
    TiO
    1-2 %
    1-2 %
    1-2 %
    MgO
    16-23 %
    16-23 %
    14-20 %
    K2O
    7-10 %
    7-10 %
    5-8 %
    Na2O
    1-2 %
    1-2 %
    1-2 %
    LOI @ 1000 C
    4-6 %
    4-6 %
    3-5 %
    Standard size & Thickness
    1000*610mm
    10-80 mm thickness
    10-80 mm thickness
    10-80 mm thickness
    1200*1000 mm
    30-80 mm thickness
    10-80 mm thickness
    10-80 mm thickness
    Production Process
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Pressing

    Mixed vermiculite material delivered to the press machine to shape into size
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Drying

    Drying to remove the moisture and make the vermiculite board strong
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles

    Quality checking

    Product Packaging
    Fireplace Refractory Vermiculite Insulation Board Heatproof For Steel Ladles
